Architecture

Why did I choose Go for this ?

I enjoy writing Go.

While aware of some of Go limitations due to the Go runtime, I decided to go through with this project to see what can be accomplished.

I also wanted to smoothly integrate networking features like socks5 and ligolo-ng, which are technologies already available as Go packages.

Components

Orsted components are pretty straight forward.

orsted-server is the central server of the Framework
orsted-db is the database (file) that store and track what is done
orsted-client is the CLI that allow the operator to interact with the orsted-server
orsted-beacon is the piece of software delivered to a victim

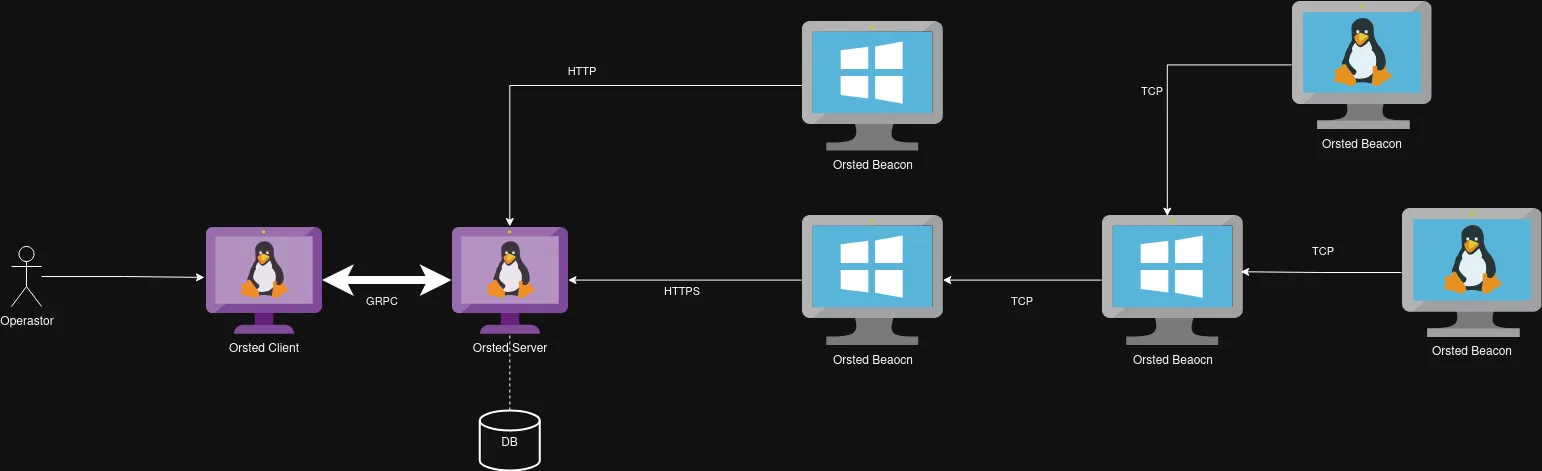

Here is a small diagram showcasing the components talking with each others.

diagram

Project and Directory structure

.
├── beacon
├── client
├── data
│   └── clientconf.toml
├── modules
│   ├── cat
│   ├── download
│   ├── evasion
│   ├── execute-assembly
│   ├── inline-clr
│   ├── ls
│   ├── powercliff
│   ├── procdump
│   ├── ps
│   ├── psexec
│   ├── run
│   ├── runas
│   ├── shell
│   └── token
├── profiles
├── protobuf
├── server
├── test
└── tools
    ├── compiled-modules
    │   ├── linux
    │   └── windows
    └── windows
        ├── dotnet
        └── ps1

beacon contains the code for the beacon. It is compiled on the fly everytime a beacon is generated.
client contains the code for the orsted-client.
data is a directory meant to contain data for the client. It contains the clientconf.toml

# Data used for https listener certificate
DefaultHTTPSCert = "./data/cert.pem"
DefaultHTTPSKey = "./data/key.pem"

# Data used For grpc auth with the server
# TODO

# Windows Arsenal

## Path of the assembly you use during engagement (Rubeus, Seatbelt etc.)
NetAssemblyPath = "./tools/windows/dotnet/"

## Path of the PS1 Script you use during engagement
Ps1ScriptPath = "./tools/windows/ps1/"

## Path of the compiled windows DLL
WindowsModulePath = "./tools/compiled-modules/windows/"



# Linux Arsenal

## Path of the compiled linux so
LinuxModulePath = "./tools/compiled-modules/linux/"


# Command Info
LinuxCommands = ["back", "load-module", "sleep", "interact", "session", "task", "shell", "socks", "pivot", "download", "upload", "run", "ls", "autoroute", "cat"]
WindowsCommands = ["back", "load-module", "sleep", "interact", "session", "task", "shell", "socks", "inline-clr", "execute-assembly", "evasion", "run", "upload", "download", "pivot", "ps", "token", "runas", "ls", "autoroute", "procdump", "cat", "psexec", "powercliff"]
GlobalCommands = ["hoster", "socks", "listener", "generate", "session", "task", "interact", "autoroute"]

modules contains all the code for DLL and SO to be loaded in the orsted-beacon at runtime
profiles should contains the default profile embedded in the server at compile time (futur work to be done on this part)

The default profile is

{
    "endpoints": {
        "registerBeacon": "/MicrosoftUpdate/ShellEx/KB242742/32323",
        "socksMessage": "/MicrosoftUpdate/ShellEx/KB242742/avatar_9090.png",
        "autorouteMessage": "/MicrosoftUpdate/ShellEx/KB242742/mt.png",
        "beaconTaskRetrieve": "/MicrosoftUpdate/ShellEx/KB242742/health",
        "beaconTaskResultSend": "/MicrosoftUpdate/ShellEx/KB242742/medicalresults",
        "hostEndpoint": "/MicrosoftUpdate/ShellEx/KB242742/host/"
    },
    "domain": "10.0.2.7",
    "port": "80",
    "interval": 2000,
    "jitter": 500,
    "headersHttp": {
        "User-Agent": "mozilla",
        "Origin": "https://google.com"
    }
}

The headersHttp are not used still. Only endpoints and domain (aka host header in HTTP, not the actual IP contacted) are parsed currently.

protobuf is the protocol buffer definition of orsted C2
server is the code of the orsted-server
test should contains tests in the future
tools contains all your arsenal (referenced in ./data/clientconf.toml
